PowerLogix Z-Force ZIF speed switches? Help!

PowerLogix Z-Force ZIF speed switches? Help! Troubleshooting 6 posts Mar 25, 2015 — Mar 31, 2015

#1 Wed, 25 Mar 2015 - 16:17

Anybody have PowerLogix's Switch_Demo.sit software? The only links I can find to it all lead to the same dead end on PowerLogix's mostly dead web site.

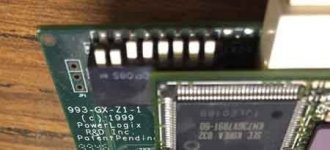

I have a Z-Force upgrade with switches to adjust the multipliers for clocking the chip, and no idea what the individual switches do. I need a chart or the aforementioned software (which has a chart in it) to figure it out.

Anyone?

#2 Thu, 26 Mar 2015 - 12:14

We did have a go at nutting those switch settings out - I'll see if I can dig it up out of the archives, if it wasn't lost in the system crash a few years back.

Meanwhile, see if archive.org has that driver for you, or macdrivermuseum.

#3 Thu, 26 Mar 2015 - 12:38

Thread found but the tables are all messed up. Give me a bit and I'll see if I can fix them. There might be other info in that thread useful to you.

#4 Thu, 26 Mar 2015 - 15:49

Nevermind... see next post.

#5 Thu, 26 Mar 2015 - 15:55

Joy!

https://web.archive.org/web/20000818132321/http://www.powerlogix.com/download/zforceman.pdf

And the Cache Profiler control panel for MacOS 8.1+:

https://web.archive.org/web/20010708060751/http://www.powerlogix.com/download/G3G4CacheProfiler1.4.sit

#6 Tue, 31 Mar 2015 - 22:01

Great!

I fixed up the tables in the other thread anyways. Figured they might be useful to someone eventually.
