Powerbook 540c LCD, Can It Run In Grayscale Mode?

maceffects said that he has 2

did you check with him?

Nope. I figured it was probably general knowledge here, just something that I don't happen to know.

All PowerBook 5xx series logic boards are the same, as such, if you're going from a 540 display to a 540c display, you'll get a pleasant surprise - COLOUR! As with any colour Mac, you can also switch it to greyscale if you want.

Sounds good.

ill follow up with maceffects.. maybe his 2 540's do not have any T.V.

I should fire up my 540c , Switch it to greyscale and see how many shades of grey its capable of...

So the consensus is that you could install a "C" Screen in your 540, (with the proper corresponding display cable) leave it in grey scale, and just pretend its an authentic fully working 540 lol?

I can just picture you on the couch -Dark- (rocking back and forth) with one of those plastered half crazy grins, GreyScale LCD Glow on your face, saying weeeeeee I'v got a real grey scale Five-four-deeeee

With Blow apart parts to 520c's/540c's and Tunnel vision screens littered all over the floor.

lol

I should fire up my 540c , Switch it to greyscale and see how many shades of grey its capable of...

Click to expand...

If you could, it would be appreciated.

So the consensus is that you could install a "C" Screen in your 540, (with the proper corresponding display cable) leave it in grey scale, and just pretend its an authentic fully working 540 lol?

Click to expand...

Pretty much. I don't want to play screen roulette with the 540's being so flaky. Plus, 540c screens seem to be easier to come by. Although the one I found on eBay today, the seller is a jerk. He had the screen listed for $61, I made him an offer of $41, and he rejected the offer, no counter offer, removed the OBO from the listing and bumped the price to $95, and that's without the proper data cable. Good luck getting that for a used screen with no data cable, buddy.

Grayscale seems to top out at 256/8bit running under the Monitors Control Panel/Mac OS Drivers. I'm wondering if RadiusWare will drive one of their cards in grayscale @ 16bit?

Running the Portrait Display in 24bit color would be an interesting experiment as well.

Radiusware? Never heard of it.

RadiusWare is the proprietary Driver/Control Panel environment for Radius Video Cards and the name of the software for running the Radius Rocket in accelerator mode.

Interesting. Well, if I manage to get my hands on a 540c LCD, it's worth a shot, assuming I can locate the software.

Grayscale seems to top out at 256/8bit running under the Monitors Control Panel/Mac OS Drivers. I'm wondering if RadiusWare will drive one of their cards in grayscale @ 16bit?

Click to expand...

RGB video cards (with very rare exceptions) use six (original VGA) or eight (most things since the early 90's) bit D/A converters. Since a "shade of grey" is composed of an equal intensity of all three color elements the number of shades of gray you get is limited to the granularity of the D/A converters, IE, 8 bit, IE, "256 greys". (Monochrome CRT monitors use a single intensity feed connected to one of the three converters, while a color monitor displaying greys, again, needs to lock all three D/As together.) In principle you could get more shades of grey if instead of feeding a grayscale monitor conventionally you combined the outputs of all three D/As via a resistor network (or some other method) but you'd have to write a custom driver to make a sensible grayscale palette out of it.

One thing I'm mildly curious about is how many greys the Powerbook 540-era can actually display. I have an old TFT-screen'ed 486 laptop that has a very pretty display but it actually only has a 12 bit interface, which means it's only really capable of doing 16 shades of grey. (It looks fine under most circumstances because the video controller does some interpolation to keep things from getting "washed out" but you can reveal the truth by writing an appropriate BASIC program.)

That's a really good point. I wonder how many levels of grayscale it can actually display. It might say 256, but I wonder if it really is.

I know the panel is capable of displaying 15-bit color (5.5.5.0.1) or 16-bit color (5.6.5.0.0) at the reduced resolution of 640x400 on the Powerbook 540c. Don't know what that means for grayscale. If it is true 16-bit, and they use the green channel to display grayscale, it would be 64 shades of gray. 15-bits would be 32 shades of gray. If the panel is only 12-bits, like the one in your example, there would be only 16 shades of gray. Worst case scenario, if the 16-bit color is nothing but dithered 256 shades, then it would only be capable of displaying 8 shades of gray since 256 colors, using the green bits, only displays 8 shades.

I find this very interesting. For anyone that has a 540c, if you could check to see how it displays 256, 64, 32, 16, and 8 gray gradations, I'd be rather interested in the results. As soon as one can see obvious banding, dithering, etc... it has exceeded the ability of the screen to display that many shades.

I'd be pretty surprised if it can actually do a true according-to-Hoyle 256 grays. Until recently there were probably more laptops shipped with 18 bit (IE, six bit per channel, IE, "64 greys") LCDs than 24 bit displays. Someone even tried to sue Apple over it..

Not that it really matters. The human eye has to work to tell the difference between six and eight bit grey, and even 4 bit grey can look pretty good. (far better than 4 bit color.)

Very true. I'd almost forgotten about that. It is probably a 12-bit panel, making it no better than the Powerbook 520 at displaying grayscale, except it's active matrix.

I guess that makes the screens on the grayscale 540's that much more rare, displaying true 64 shades of gray. It must have been an expensive grayscale panel at the time.

If I can get my hands on a panel, it will be interesting to see if I can find a program that can give me the lowdown on the panels actual capabilities.

520

Grayscale (16 Grays)

Passive

520c

Color (256 Colors)

Passive

540

Grayscale (16 Grays)

Active

540c

Color (256 Colors)

Active

http://support.apple.com/kb/TA21582?viewlocale=en_US&locale=en_US

Yeah, I wouldn't trust that page all that much. It also says the 540 is 16 shades of gray, when this says it isn't:

http://support.apple.com/kb/sp162

This page says the internal display of a 540c can do 16-bit @ 640x400:

http://support.apple.com/kb/sp163

It was undoubtably expensive, but the color active matrix panels were even more expensive, requiring 3x as many pixels for the same resolution. I remember it was pretty much a given that an active matrix screen would have at least one dead/stuck pixel, usually 2 or 3. It was that or live with the ghosting and poor contrast of a passive matrix screen. We really have been spoiled by modern TFT panels with vivid, pristine displays and they're dirt cheap. You can buy a whole brand new laptop these days for a fraction the price of the TFT panel alone in the late 90s.

I remember buying an AOS 15" TFT Computer Monitor (VGA), From newegg for 379.00

back 12-13 years ago.

I bought a big 19" Gateway LCD screen from Micro Center a few years later for 239.00 thinking that was a deal of a lifetime.

my dad is still using it to this day.

This isn't the definitive, because the model # is one digit off, but if you Google for the datasheet for the Sharp color LCD panel's part number listed in the parallel thread to this you'll find one for a panel that appears to be identical and that datasheet says it's 12 bit (4 bits per channel) color. It's also worth noting that the "Service Source" hardware manual for the 500 series repeats that "16 greys" claim.

On the flip side, the "Developer Note" for the 500 series has a confusing section talking about the CLUT's 16 bit color mode and explains how they've especially optimized yadda yadda blaw blaw blaw so the video system will avoid attempting to display certain colors which don't render properly on the LCD, with that the end result is that the passive color displays can show a range of "about 4000" colors, while the range for the TFT displays is "around 24,000".

The display controller IC contains a 256-entry CLUT. Although the CLUT supports apalette of 32,768 colors, many of the possible colors do not look acceptable on the display.

Due to the nature of color LCD technology, some colors are dithered or exhibit noticeable

flicker. Apple has developed new gamma tables for these displays that minimizes flicker

and optimizes available colors. With these gamma tables, the effective range of the CLUT

for the active matrix color display is about 24,000 colors; for the DualScan color display,

the effective range is about 4000 colors.

Click to expand...

That latter number is bigger than 12 bits, which implies that even *if* the LCD's interface is only 12 bit the video hardware may do some sort of time-based multiplexing/dithering to increase the available color range (resulting in the "flicker"?). Perhaps that's the source of the "64 grey" claim, *or* perhaps whoever typed that up confused something between the LCD's capabilities and the external video port. (15/16 bit "highcolor" DACs, which is what the developer note says the CLUT is part of, usually only had 6 bit DACs.) All we really know is the video hardware *logically* supports "256 greys".

(Unfortunately the manual doesn't actually have the pinout of the LCD connector so we can't count data pins.)

In any case, fretting about exactly how many greys an 18 year old laptop does or does not display is probably a little silly in the grand scheme of things.

It's almost worth starting "The Grayscale Thread" in Peripherals for this discussion!

I've heard it said that the human eye can't distinguish more than 256 shades of gray, but I've often wondered about that. Is it possible to define 512 distinct gradations of gray in a 24bit color graphic? If so, it would be interesting to do that and check it against a matching 256 level grayscale chart in the top half of a comparison file. Looking for a difference in the banding between top and bottom halves of the graphic might prove informative.

If the CLUT is capable of 32,768, then it's 15 bit, meaning there are 32 shades of gray at most. Assuming it is most likely a 12-bit panel, it can only truly show 16, so it puts it on par with the 520, just being active matrix. The active matrix part along makes it worthwhile. This passive matrix stuff is driving me nuts.

Is it possible to define 512 distinct gradations of gray in a 24bit color graphic?

Click to expand...

Not true greys, no. You could certainly make an image that included the 256 real greys alongside another 256 shades in which the color values for RGB are not exactly the same. (IE, in addition to using #000000 through #FFFFFF you could add some arbitrary stripes where you subtract 1 from one of the RGB channels, IE, #FEFFFF.) But by definition those extra "greys" will actually be subtly "sepia toned". WHICH IS CHEATING.

They do sell video cards and monitors capable of 30 bit color now, so if you really want 1024 true greys you can have it. A setup to do it will run you around three grand. I have to admit I'm sort of curious if a double-blind test between one of those systems and an "equally high quality" IPS panel+24 bit card would really show that humans can tell the difference between 16 million and one billion colors.

If the CLUT is capable of 32,768, then it's 15 bit, meaning there are 32 shades of gray at most.

Click to expand...

The misleading part is the resolution of the CLUT doesn't necessarily tell you the resolution of the DACs. ***Using a CLUT for 15 bit color is actually unusual... (*** EDIT: Rest of this thought deleted. Glancing again at the piece of the manual I quoted I see the CLUT in this Powerbook doesn't do 15 bit indexed color, its palette register is 8 bits long. Derp. In my defence, the verbage of the service manual is nonstandard, since it says "CLUT" to refer to what in a VGA card would be the entire "RAMDAC", of which the CLUT is only a part, aka, the palette register. Anyway...) All PC "highcolor" VGA cards that did 15 or 16 bit color, aka, "Thousands of colors" in Mac terminology, still had *at least* six bit ADCs in their RAMDACs, they just couldn't use the entire range when in the highcolor mode. (Which leads to the odd situation that you could actually have more true grays running in an 8 bit grayscale mode than you could in "thousands of colors" mode, because, as you note, the effective grayscale resolution is only 5 bit in "thousands of colors" but it's six or 8 bit in the indexed mode.)

But, again, DAC only applies to the external monitor port on a Powerbook. Given the evidence I'd wager that the color LCD in the 540c could do 16 "real genuine according to Hoyle" greys, but when you have it set for grayscale it just might use dithering to fake a higher number. IF someone has the part number for the greyscale LCD they should Google it and see if they can find a datasheet. It's worth a shot.

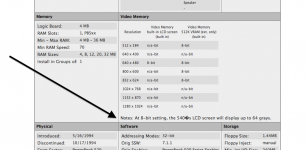

so does this mean they are telling a fib?

Its to the external video for 8 bit. n/a for built in display.

[attachment=0]Screen Shot 2013-08-29 at 7.56.33 PM.png[/attachment]

so does this mean they are telling a fib?

Click to expand...

Hard to say. If the panel is 6-bit, and the CLUT can use 6 of the 8 bits in the register in grayscale mode, it is possible it could display 64 shades of gray.

I don't think we'll ever know, since there are literally no search results returned for the part number of the 540 LCD.

Every now and then, I get a hankering for one of those huge Planar medical grayscale LCDs they use for displaying X-ray images. You can pick them up cheap, but alas they require a matching proprietary video card to drive them. Some ridiculous resolution like 2300x1600 @ 23" and presumably better than average gray distinction.

In principle you could get more shades of grey if instead of feeding a grayscale monitor conventionally you combined the outputs of all three D/As via a resistor network (or some other method) but you'd have to write a custom driver to make a sensible grayscale palette out of it.

Click to expand...

Interesting thought. I wonder if the "driver" side of things could be taken care of in one of the FPGA/CPLD based panel driver boards from Chinese ebay sellers.

180 in 16 greyscale



540c in 256 greyscale

I'd say it def. looks better than 16, so it's a toss up between 32 and 64.
