So it was how it came to me.
Wow! That's probably the dirtiest SE/30 board I've ever seen!
Anyway, Uniserver does more than just recaps, so just ask, and I'm sure he can work something out with you.
Good luck!
c
Anyway, Uniserver does more than just recaps, so just ask, and I'm sure he can work something out with you.
Good luck!
c
I'm all ears!!
Send my boards to thousands of miles I think that it is not viable.
Thank you.
Send my boards to thousands of miles I think that it is not viable.
Thank you.
Interesting to see the cap goo bleed through the dust.
Whoa. Where were they keeping that thing, inside a vacuum cleaner?
Good luck!
Good luck!
It was inside the case The accumulation of dirt come it by the fan with the years simply through use. Even so functions as the first day.
Hi my friends.
I replaced TDA1170 from the analogic board and the problem persists.
Also I made a screenshot and I have extracted the picture from the machine to view that really should be displayed:
I would like to locate an a solution without having to change the logic board, as this is unattainable for me.
New ideas are welcome.
Thank you.
I replaced TDA1170 from the analogic board and the problem persists.
Also I made a screenshot and I have extracted the picture from the machine to view that really should be displayed:
I would like to locate an a solution without having to change the logic board, as this is unattainable for me.
New ideas are welcome.
Thank you.
It's a long shot, but try changing the order of the SIMMs. Those are the long thin cards that rise up from the logic board, and there should be some kind of clips holding them in place. Release the clips and slide the card out. Take them all out and put them back in a different order. That will tell us if it is a faulty SIMM.
Thank you but but this long shot possibility was ruled out long time.
Your only solution is to either go trace-by-trace looking for the break, or replace it piece-by-piece until you find the piece that is broken.
OK. The first thing is to know where to start.
First I think that it should checking the VRAM and its route until the video signal generated which goes to the analog Board.
For this it is essential the schematic.
These are public domain?
First I think that it should checking the VRAM and its route until the video signal generated which goes to the analog Board.
For this it is essential the schematic.
These are public domain?
Nope, no mac schematics are public domain. However, you may still be able to find them online. The guy that used to make them de novo has since retired, so that route is closed.
Wow, you say words that my translator is not able to interpret
You say that exist schematics for the network and there is nothing domain public, then I understand that for consult these schematics is necessary to pay.
It is possible that my difficulty in interpreting certain colloquial phrases in English are fact that misunderstood the meaning of them. Please tell me if.
You say that exist schematics for the network and there is nothing domain public, then I understand that for consult these schematics is necessary to pay.
It is possible that my difficulty in interpreting certain colloquial phrases in English are fact that misunderstood the meaning of them. Please tell me if.
Well, your translator was close. You may be able to find them online, though they would obviously be illegal copies. The guy who made new schematics for macs retired (is no longer working). Hopefully your translator will get my new phrasing.
I would imagine it choked on de novo, that's because its not English, its Latin (the dead language). It means from scratch, or starting new.
If I'd known you were using a translator, I would have used easier to translate wording.
I would imagine it choked on de novo, that's because its not English, its Latin (the dead language). It means from scratch, or starting new.
If I'd known you were using a translator, I would have used easier to translate wording.
Thank you. You're very kind, but still its second sentence is incomprehensible. Words like "Novo" are not recognized in your language or in mine, both languages, by the way, daughters of Latin.
The schematics which you mean should be these: http://www.maccaps.com/MacCaps/Schematics.html
The schematics which you mean should be these: http://www.maccaps.com/MacCaps/Schematics.html
Yep, the only difference, if I'm not mistaken, is that your version is 220v, not 120v. There tend to be a few differences on the analog board between 220v and 120 volt versions, but the logic board should be the same.
Where are you based ? from what i can see in the pictures above probably from a country speaking Spanish.
Your best try will be to find someone around having a working unit to compare with.
I have got dome schematics i can send to you if required, send me PM with a valid email.
Your best try will be to find someone around having a working unit to compare with.
I have got dome schematics i can send to you if required, send me PM with a valid email.
Thank you.
I'm spanish and these Macintosh here are scarce, therefore making it very difficult to access another logic board to compare.
I'll has send a PM.
I'm spanish and these Macintosh here are scarce, therefore making it very difficult to access another logic board to compare.
I'll has send a PM.
hi Sinclair - im in Ireland and if you post over the board id be glad to test it out for you. I have many macs and a few spares - don't want any money for it - gladly do it for free - you just cover postage over and back of just the logic board - Something you can test yourself is the continuity test on UE8 from each pin to the first via's you find. Do the same for UC8,UD8,UE8,UF8
-
ive seen many boards, allot of dust.......but WOW.....that was the most dust covered board ive ever seen -
cheers
-
ive seen many boards, allot of dust.......but WOW.....that was the most dust covered board ive ever seen -
cheers
Thank you falen5.
I'll take your word for it!
I'll take your word for it!
I doubt the issue is related to UE8 in this situation, I never even thought to click on this thread due to title, op pm'ed me wanting to buy a ls166, I mean no problem I have a roll of hc166's . But I think mike is right on the money with a screwed up pal. Too bad on this darn revision they are soldered down, other revisions has them all in sockets .
I find the more dusty the less eaten by leaky cap goo, dust acts like a wick. That darn se30 has seen some hours. I would say that one probably paid for it's self for sure.
Thanks for the reply.
Desoldering is no problem for me.
Tell me please only the component(s) that you suspect and I can move forward.
https://68kmla.org/forums/index.php?/topic/22545-macintosh-se30-killed-by-a-mouse/page-2
similar issue on this thread.
similar issue on this thread.
falen5
is fairly near you there in ireland. maybe you can message him and buy a parts board off em or something?
I have seen pals go bad a few times… but its not super common, i would say its more common for UE8 issues or VRAM issues… And i don't think you have issues with either of those, concerning your current issue. maybe the parts board you can get has good pals?
is fairly near you there in ireland. maybe you can message him and buy a parts board off em or something?
I have seen pals go bad a few times… but its not super common, i would say its more common for UE8 issues or VRAM issues… And i don't think you have issues with either of those, concerning your current issue. maybe the parts board you can get has good pals?
Thanks for the information.
Although there are parts of your response that I am not able to translate.
When you say "pal" would you tell PAL (part)?
The translator tells me that this word means 'friend'
I do not understand what I want to ask this:
Although there are parts of your response that I am not able to translate.
When you say "pal" would you tell PAL (part)?
The translator tells me that this word means 'friend'
I do not understand what I want to ask this:
Sorry for the inconvenience.

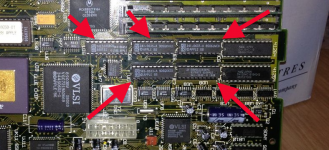

the only way to obtain some would be from a parts board, and they are the I/C's marked by arrows in the image i posted.
OK. I understand.
I guess that these PAL are not known their equations and it is impossible to replace them in another way.
I guess that these PAL are not known their equations and it is impossible to replace them in another way.
correct they are special chips, that are proprietary to apple.
Ok.
I have tried to change the title of this thread because it isn't very descriptive but it is not possible.
Well, I am ruling out possibilities.
I have extracted the VIDEO ROM chip and tried to read its contents set up my programmer to read a 27c64/2764 but the programmer has not recognized the chip. However if I configure it as 2732/27c32 if I read it but the information does not seem complete.
Is this normal?
If not so, would, I tell someone where to get content of this ROM to burn it on another chip and follow with the tests?
The VIDEO ROM numbers are 341-0650-A
Thank you
I have tried to change the title of this thread because it isn't very descriptive but it is not possible.
Well, I am ruling out possibilities.
I have extracted the VIDEO ROM chip and tried to read its contents set up my programmer to read a 27c64/2764 but the programmer has not recognized the chip. However if I configure it as 2732/27c32 if I read it but the information does not seem complete.
Is this normal?
If not so, would, I tell someone where to get content of this ROM to burn it on another chip and follow with the tests?
The VIDEO ROM numbers are 341-0650-A
Thank you
